Deep groove ball bearings primarily accommodate radial loads, though they can also handle a certain amount of axial load. They are capable of withstanding substantial axial loads, exhibit a very low coefficient of friction, and achieve exceptionally high limiting speeds.
● Low friction
● High rotational speeds
● High precision
● Low noise
● Multiple sealing options
Product Description

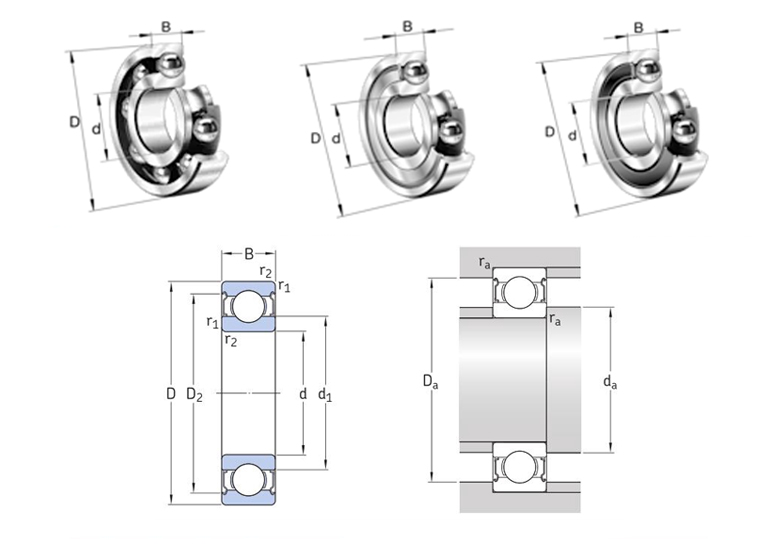

Deep groove ball bearings represent a common type of rolling bearing, available in sealed and open configurations. The open type denotes bearings without sealing structures, while sealed deep groove ball bearings feature either dust seals or oil seals. Primarily designed to handle radial loads, they can also accommodate a certain degree of axial load. When subjected solely to radial loads, the contact angle is zero. When deep groove ball bearings possess substantial radial clearance, they exhibit characteristics akin to angular contact bearings, enabling them to withstand greater axial loads. They feature a very low coefficient of friction and can operate at extremely high rotational speeds.
Features and Advantages
● Low Friction, High Speed
The minimal contact area between rolling elements and raceways results in low friction, making them suitable for high-speed applications.
● High Precision
Operating precision at P5 grade ensures low vibration and noise levels.
● Diverse Sealing and Lubrication Options
Available in open, dust-cover, contact seal, and non-contact seal configurations. Compatible with oil or grease lubrication for varied operational environments.
Product Applications
Electric motors and generators, agricultural machinery, material handling equipment, industrial gearboxes, food and beverage processing, industrial pumps, industrial fans, two- and three-wheeled vehicles, passenger cars, and light trucks.
